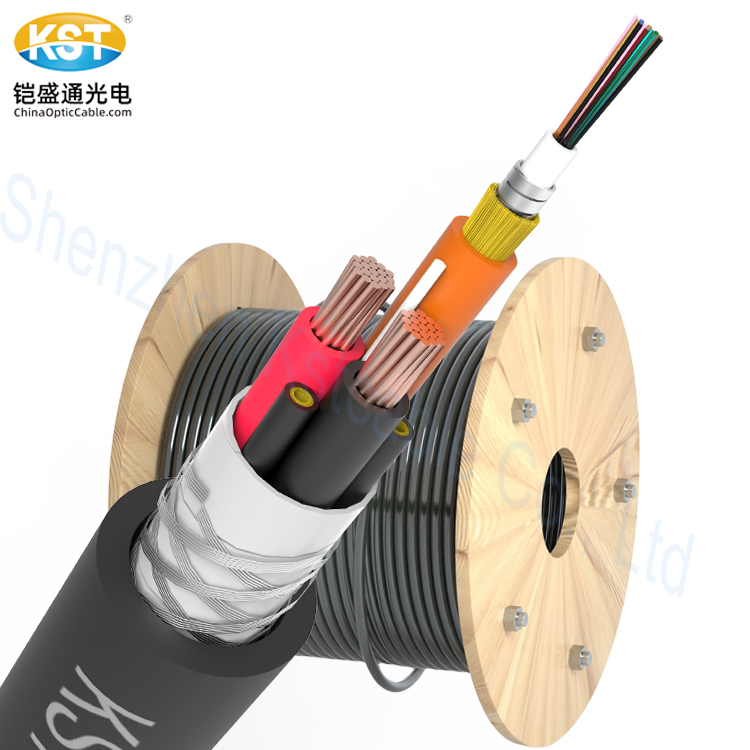

Photoelectric composite Hybrid armored cable12F SM G657A2 with 2*12AWG wire TPE OD:13.0

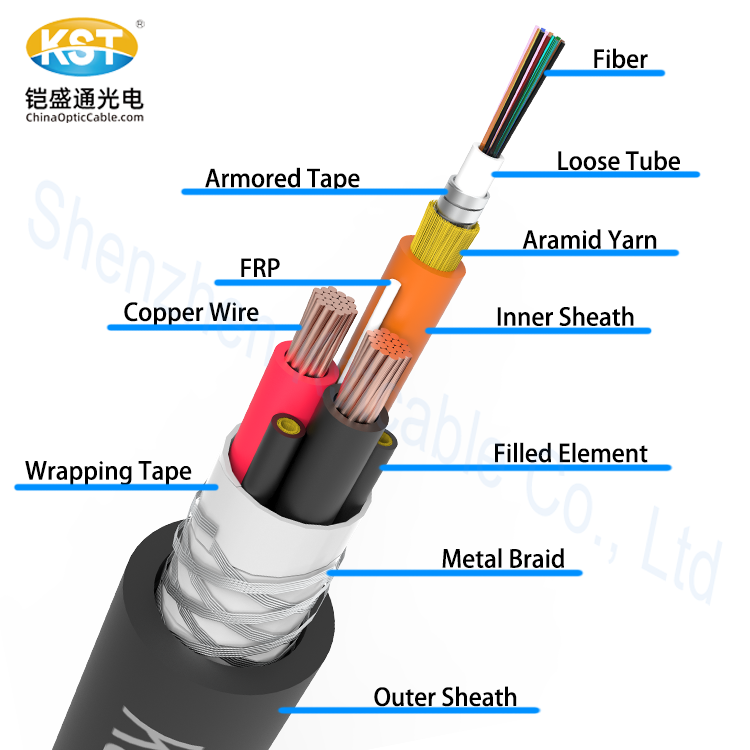

The overall structure of this cable consists of 3 functional units , 3 Filled element units  and 3 outer layers, 1 FRP is  in the middle of the Cable ;                                                                                                              The yellow functional unit with 1pcs loose tube and 12 core Fiber fill in the middle of the tube,  A layer of rat-proof spiral armored steel tape wrapping outside of it, together with a layer of Kevlar yarn reinforce the tensile resistance of the cable, the outermost of the yellow unit is LSZH jacket ,the main function of the yellow unit is signal transmission ;                                                                                                                      The red and black functional units have the same structure of inner 12AWG copper wire and outer PVC(or OFCP /LSZH/OFNP)jacket, the main function of the copper wire is conductive and grounding ;                      To ensure the structural stability and reinforce the tensile strength of the entire cable ,3  filled elements are placed inside the cable(Kevlar yarn+LSZH out sheath); For outer 3 layers, including inner wrapping tape,middle Metal braid and TPE(or OFCP/PVC /LSZH/OFNP) outer sheath , together with all above contents,completed to be a integrated cable
