Photoelectric composite Hybrid micro armored fiber cable  2F OD11.5 with 2*12 AWG Conductors;

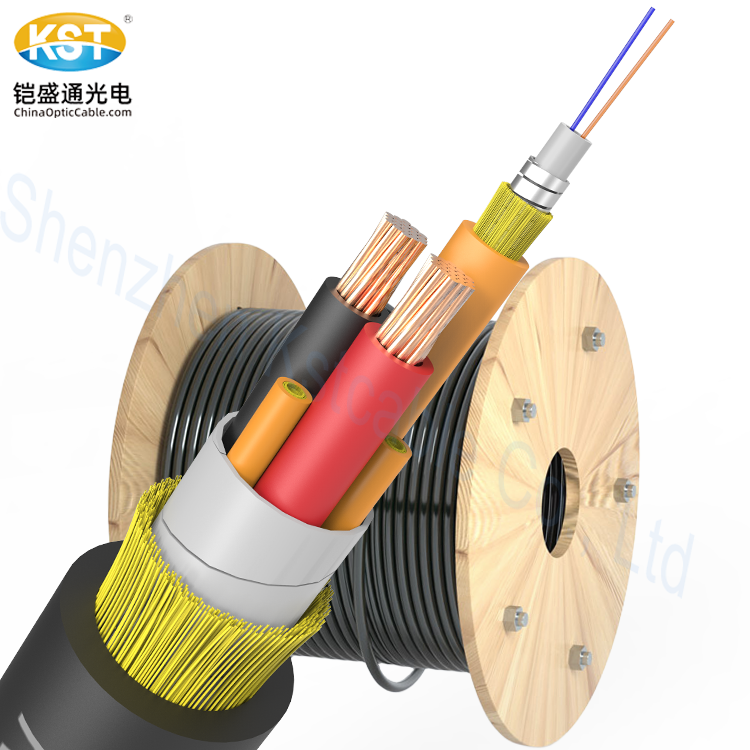

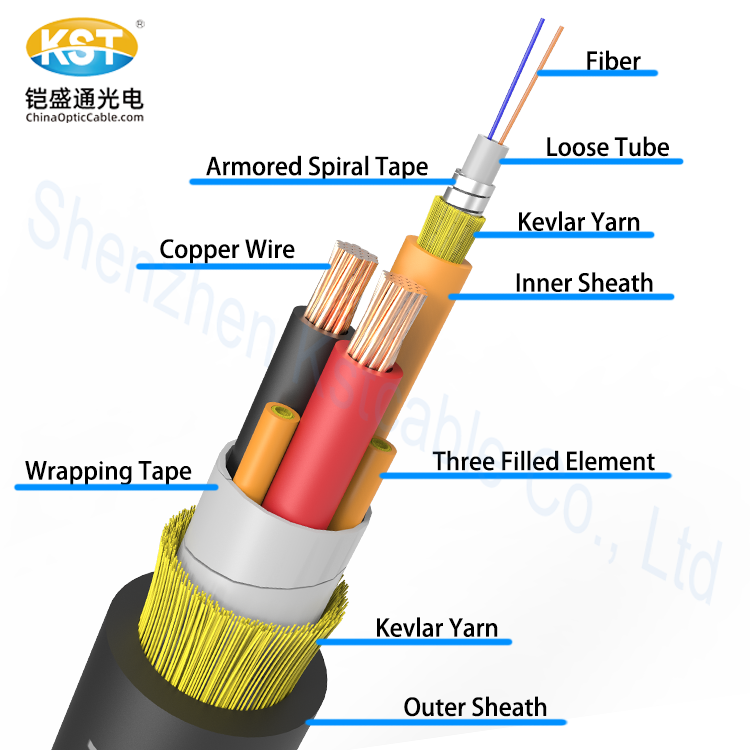

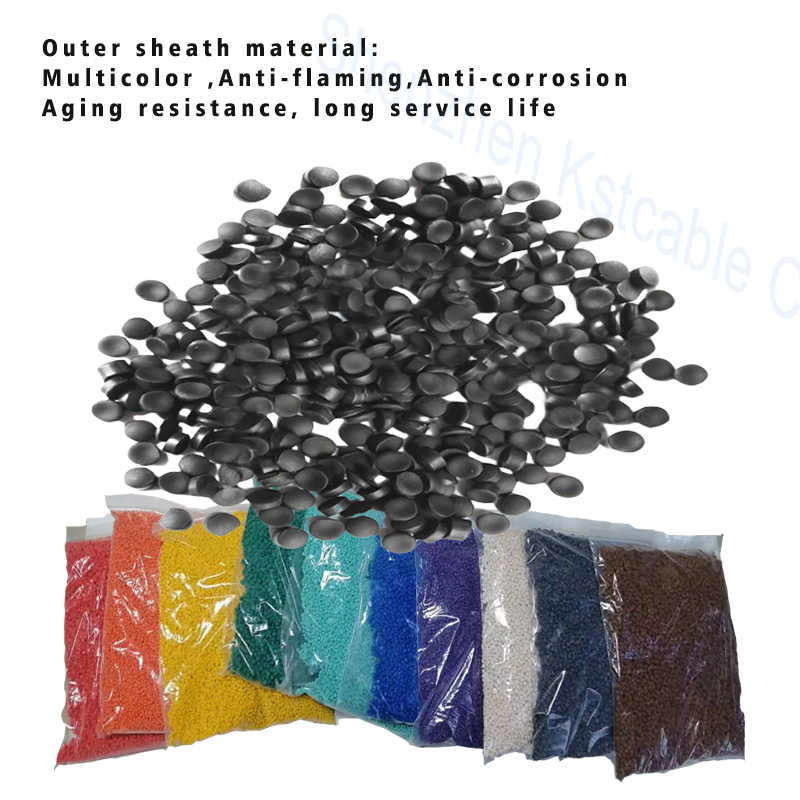

The overall structure of this cable consists of 3 functional units,3 Filled element units and outer 3 layers.  The yellow functional unit with 2 fibers in the middle of it, and the fibers are filled in a protective LSZH loose buffer tube , A layer of rat-proof spiral armored steel tape wrapping outside of the LSZH tube, together with a layer of Kevlar yarn reinforce the tensile resistance of the cable, the outermost of the yellow unit is LSZH jacket ,the main function of the yellow unit is signal transmission ;                                    The red and black functional units have the same structure of inner 12AWG copper wire and outer PVCP jacket,  the main function of the copper wire is conductive and grounding ;                                                  To ensure the structural stability of the entire cable ,3 LSZH filled elements are placed inside the cable(Kevlar Yarn filled in it);                                                                                                                                For outer 3 layers, including inner wrapping tape,middle kelvar yarn and outermost TPE (or OFCP/PVC /LSZH/OFNP) outer sheath , together with all above contents,completed to be a integrated cable .
